Company:
Hayden Island Canvas

Project Details

Fabric 1

Sunbrella
Producer/Manufacturer: Glen Raven Custom Fabrics LLC
Primary Use: Main Fabric

Fabric 2

Top Gun
Producer/Manufacturer: Marlen Textiles
Primary Use: Secondary Fabric

Fabric 3

Marine 5 Tuffak
Producer/Manufacturer: Plaskolite
Primary Use: Window

Fabric 4

O'Sea Marine clear vinyl
Producer/Manufacturer: O'Sullivan Films
Primary Use: Window


Design Name
Joshua Davis

Design Company
Hayden Island Canvas

Fabrication Name
Dustin Morgan, Nick Giorgi, Danny Hintz, Josh Davis

Fabrication Company
Hayden Island Canvas

Installation Name
Dustin Morgan, Danny Hintz, Josh Davis, Nick Giorgi

Installation Company
Hayden Island Canvas


Please describe the project specifications

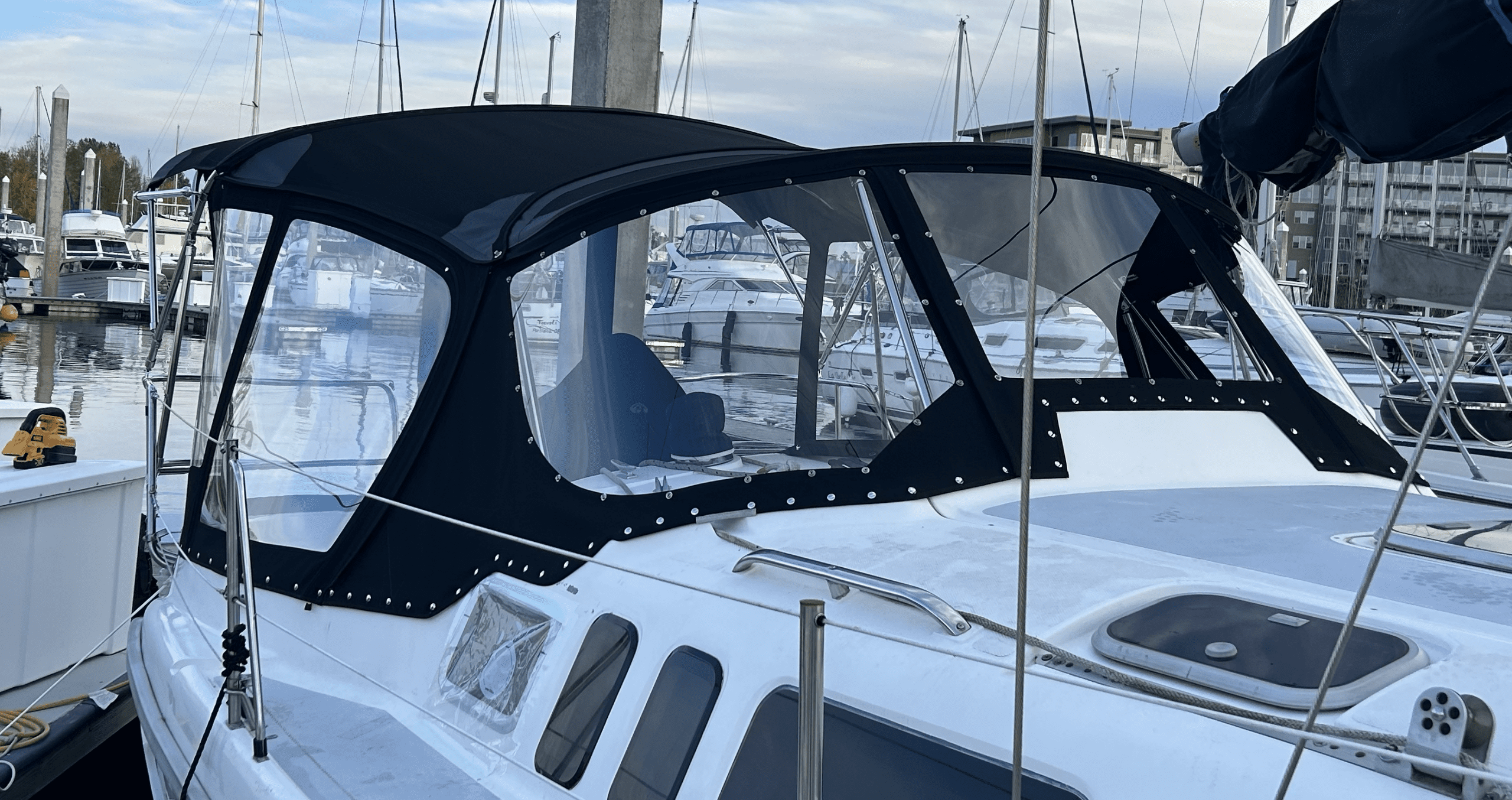

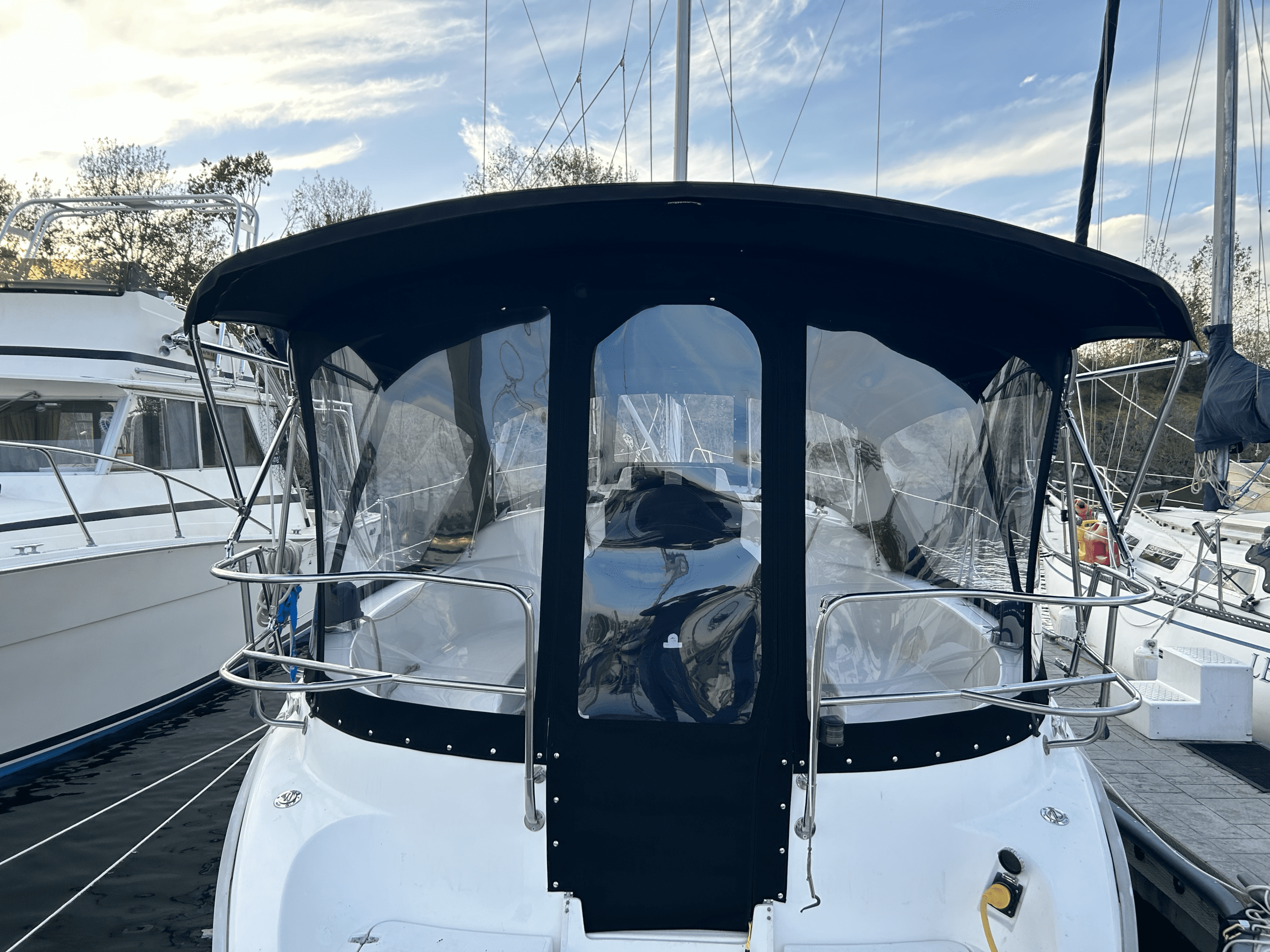

Our client wanted a custom enclosure fabricated from scratch that would provide them with an extra room on the boat during the winter, that looked great, and functioned easy for getting in and out of the cockpit. The customer also wanted the bimini top to extend over the aft seating for summer when the enclosure was not in use, but didn't want a big bulky enclosure over the aft railing. We fabricated a dodger with Marine 5 panels, and 7 panel enclosure with O'sea marine vinyl. Easy access zippers with overlapping flaps that fold back and fasten were installed at the aft entry, and port and stb locations to move forward on the boat easy.


What is unique or complex about the project?

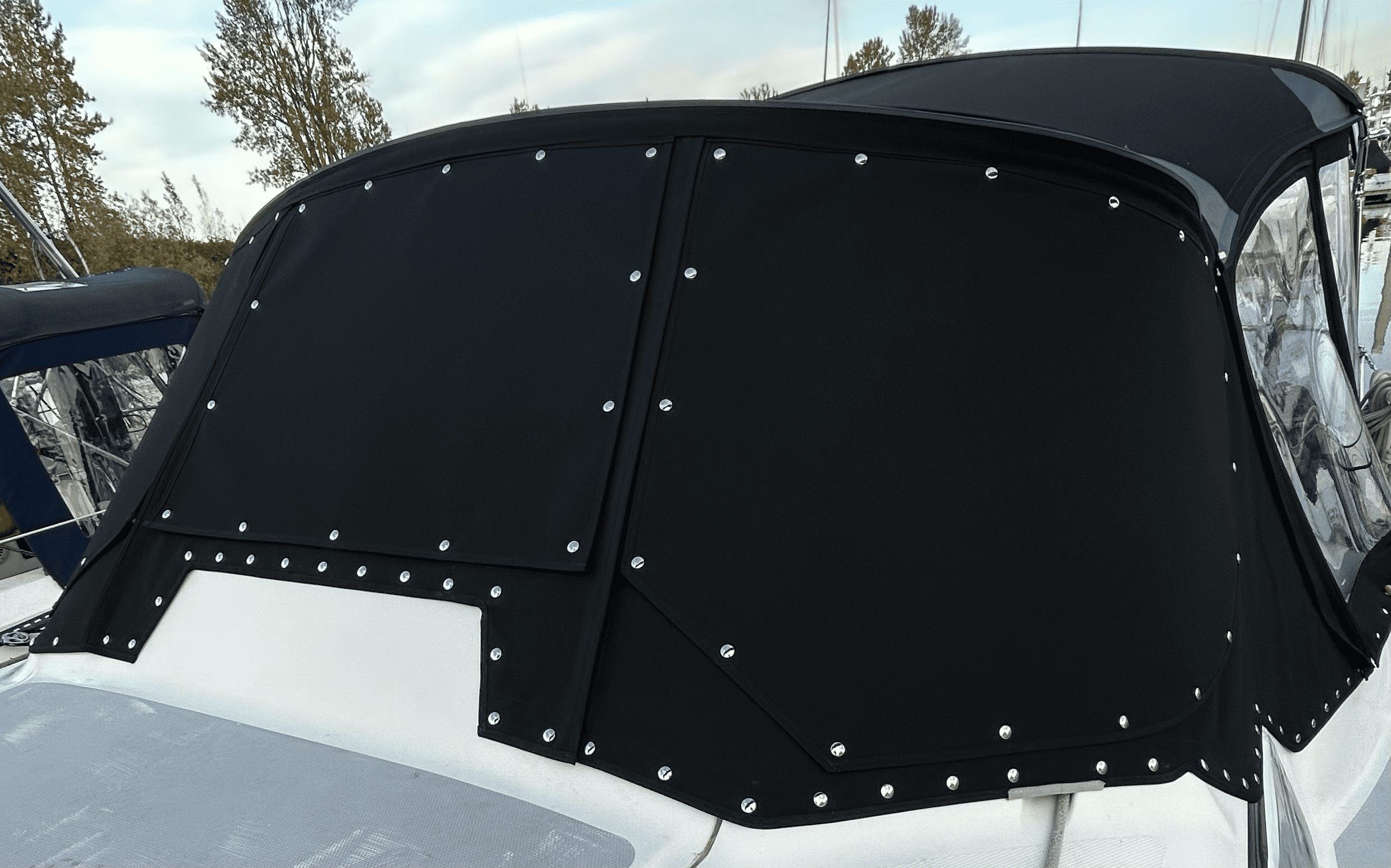

We entered this project because it best exemplifies our fit and finish, along with custom features like the overhanging aft bimini, that many other local shops won't attempt. Careful planning of the bimini and it's mid bow were required to get proper support in the right spot for the aft panels to zip to. Window lines were maximized with clean flowing lines to match the boat. The panel split locatons were carefully chosen on the sides so the panels behind the dodger can fold back as the access zipper is used instead of rolling up the doorways.
