2024 Archive : Wings Of Love Convex Awnings

Project Details

Fabric 1

Vanguard Deep Red
Producer/Manufacturer: Trivantage LLC
Primary Use: Main Fabric

Engineer Name 1
Richie Victorine

Engineer Company 1
Caribbean Awning Production Company ltd.

Design Name
Christie Lucien

Design Company
Caribbean Awning Production Company ltd.

Architect Name
Lawson Calderon

Architect Company
Caribbean Awning Production Company ltd.

Fabrication Name
Borris Small

Fabrication Company
Caribbean Awning Production Company ltd.

Subcontractor Name
N/A

Subcontractor Company
N/A

Graphics Name
N/A

Graphics Company
N/A

Project Manager Name
Christie Lucien

Project Manager Company
Caribbean Awning Production Company ltd.

Installation Name
Richie Victorine, Borris Small & Sean Regis, Sherman Daniel

Installation Company
Caribbean Awning Production Company ltd.

Please describe the project specifications

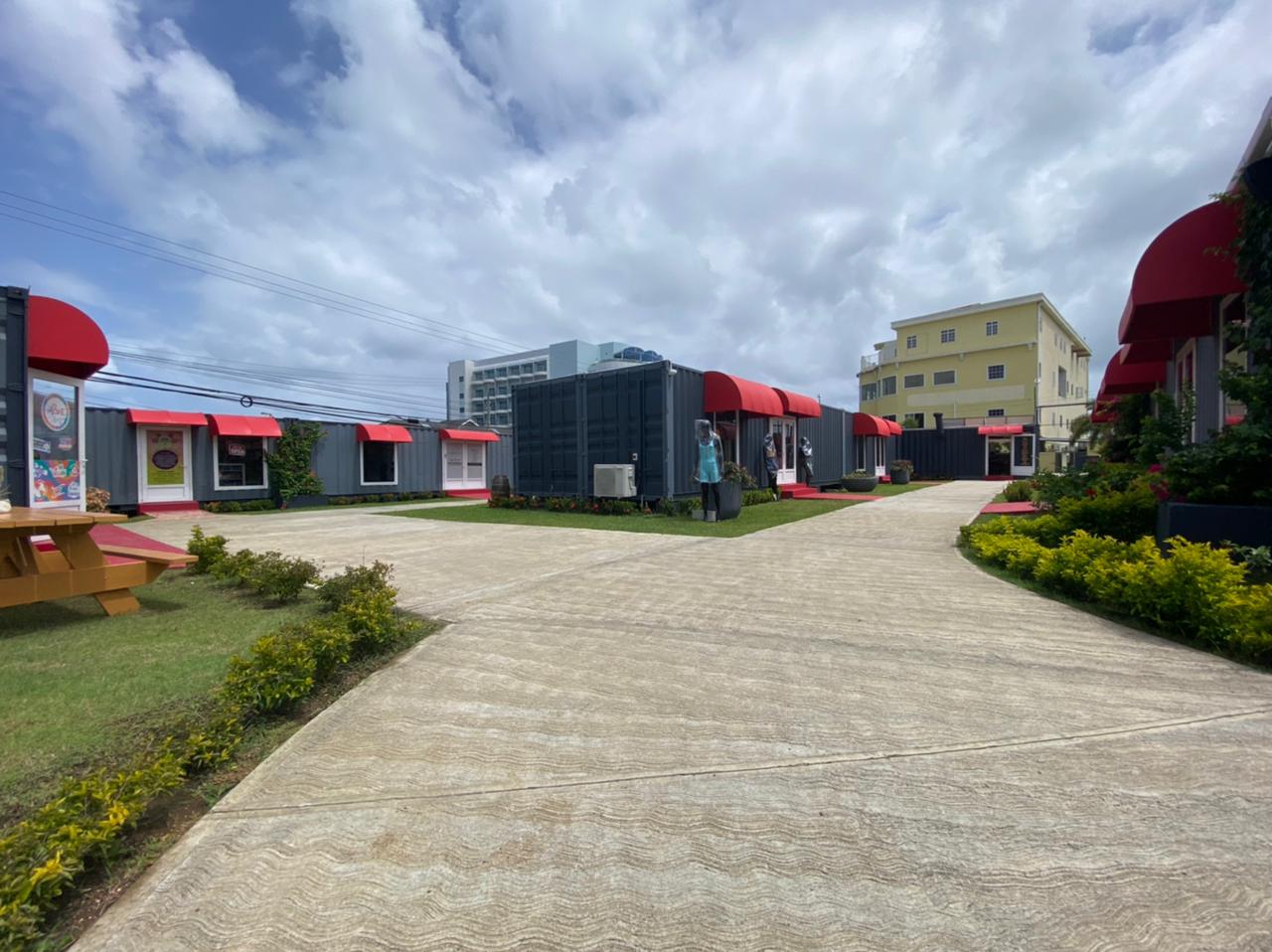

The Client expressed a specific requirement for installing convex awnings at every shop entrance and show window, in their recently constructed Boutique Container Park. These awnings are intended to provide shade & protection against adverse weather conditions. Considering the east-facing location, which experiences heavy rainfall and direct sunlight, it was crucial to meet the client's request for awnings that are both functional and visually pleasing, as the awnings serve as a prominent feature of the container park, contributing to its overall aesthetic appeal.

The Convex Awnings Were fabricated using Galvanized steel frame, Rust oleum hand primed, Automated spray primed, Automated spray painted and then Automated clear coated for a final layer of protection. The paint finish was necessary due to the park's close proximity (300ft) to the sea. The fabric used was vanguard deep red (2926) supplied by Trivantage, which comes with 7-year manufactures warranty.

Three @ 101" Width * 26" Projection * 26" Drop, Two @ 101" width * 28" Projection * 28" Drop, Six @ 89" Width * 36" Projection * 36" Drop, Two @ 101" Width * 27" Projection * 27" Drop, One @ 65" Width * 26" Projection * 26" Drop, Two @ 68" Width * 30" Projection * 30" Drop, One @ 90" Width * 30" Projection * 15" Drop, One @ 68" Width * 26" Projection * 15" Drop, Six @ 58" Width * 36" Projection * 24" Drop, Four @ 58" Width * 30" Projection * 15" Drop, One @ 56" Width * 32" projection * 32" Drop and One @ 86" width * 26" Projection * 26"Drop. A total of 31 Awnings were fabricated.

The problems encountered were mostly due to the containers installation surface which was not flush/flat so accurate measurements and frame testing was required for each opening/space.
