Company:
RetractableStructures.com

Project Details

Fabric 1

Soltis Proof W96
Producer/Manufacturer: Serge Ferrari North America Inc.
Primary Use: Main Fabric


Engineer Name 1
Hongyu Wang, PE,SE

Engineer Company 1
HW Engineering

Design Name
Angela Juarez

Design Company
RetractableStructures.com

Architect Name
Thomas Cestarte

Architect Company
HKS Architect

Fabrication Name
Angela Juarez

Fabrication Company
Eide Industries, Inc.

Subcontractor Name
Dan Chambers

Subcontractor Company
Bayley Construction

Project Manager Name
Rick McBride

Project Manager Company
Eide Industries, Inc.

Installation Name
Albert Soto

Installation Company
Eide Industries, Inc.


Please describe the project specifications

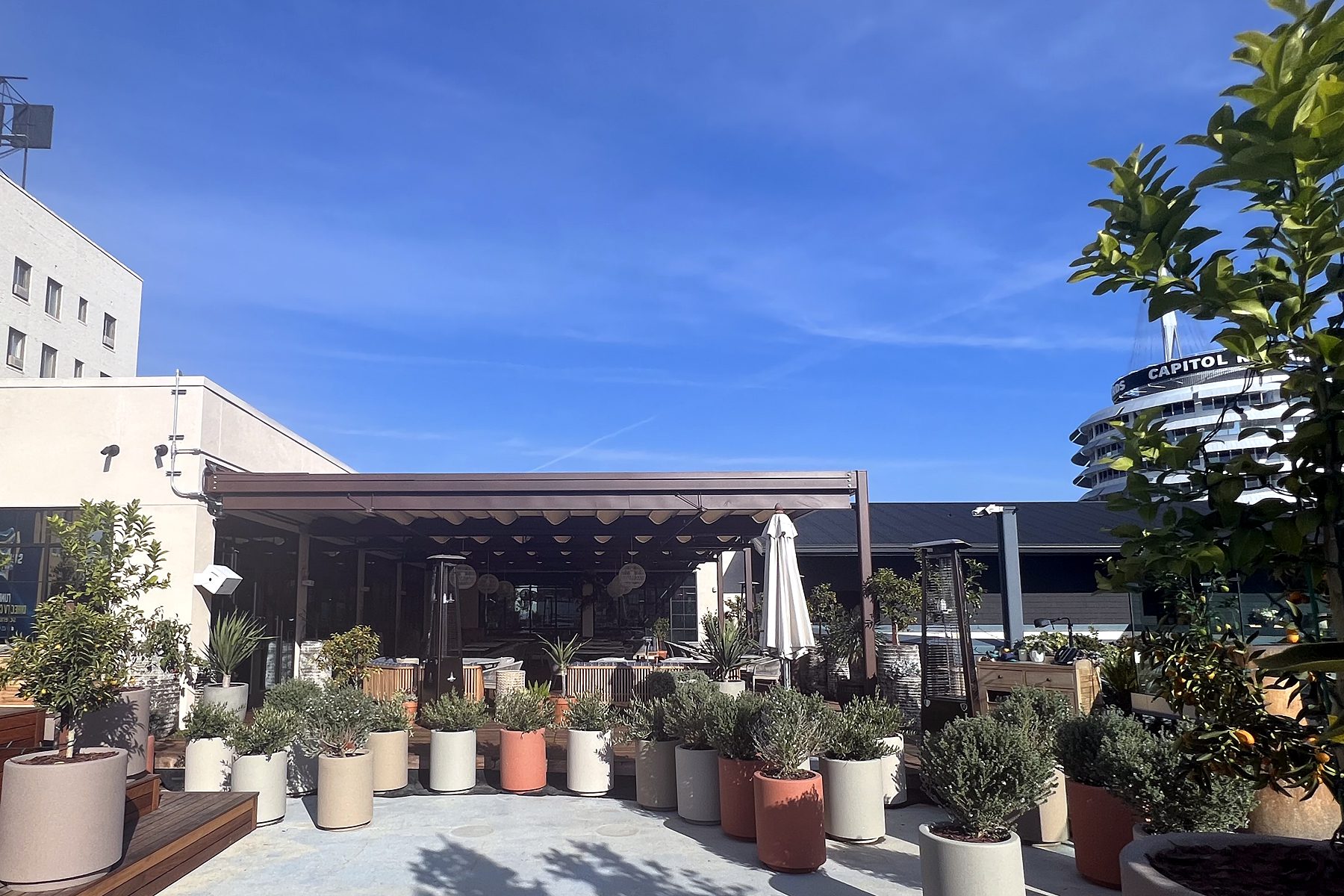

The Retractable Structures division of Eide Industries, Inc. was contacted by HKS Architects to build a motorized fabric canopy system to compliment and expand the outdoor dining area for the Lemon Grove Restaurant in the heart of Hollywood, California. Located on the rooftop of The Aster, a private members club and boutique hotel, the Lemon Grove is open-to-public with reservations and features spectacular views of the iconic Capitol Records Building and world famous Hollywood Sign.

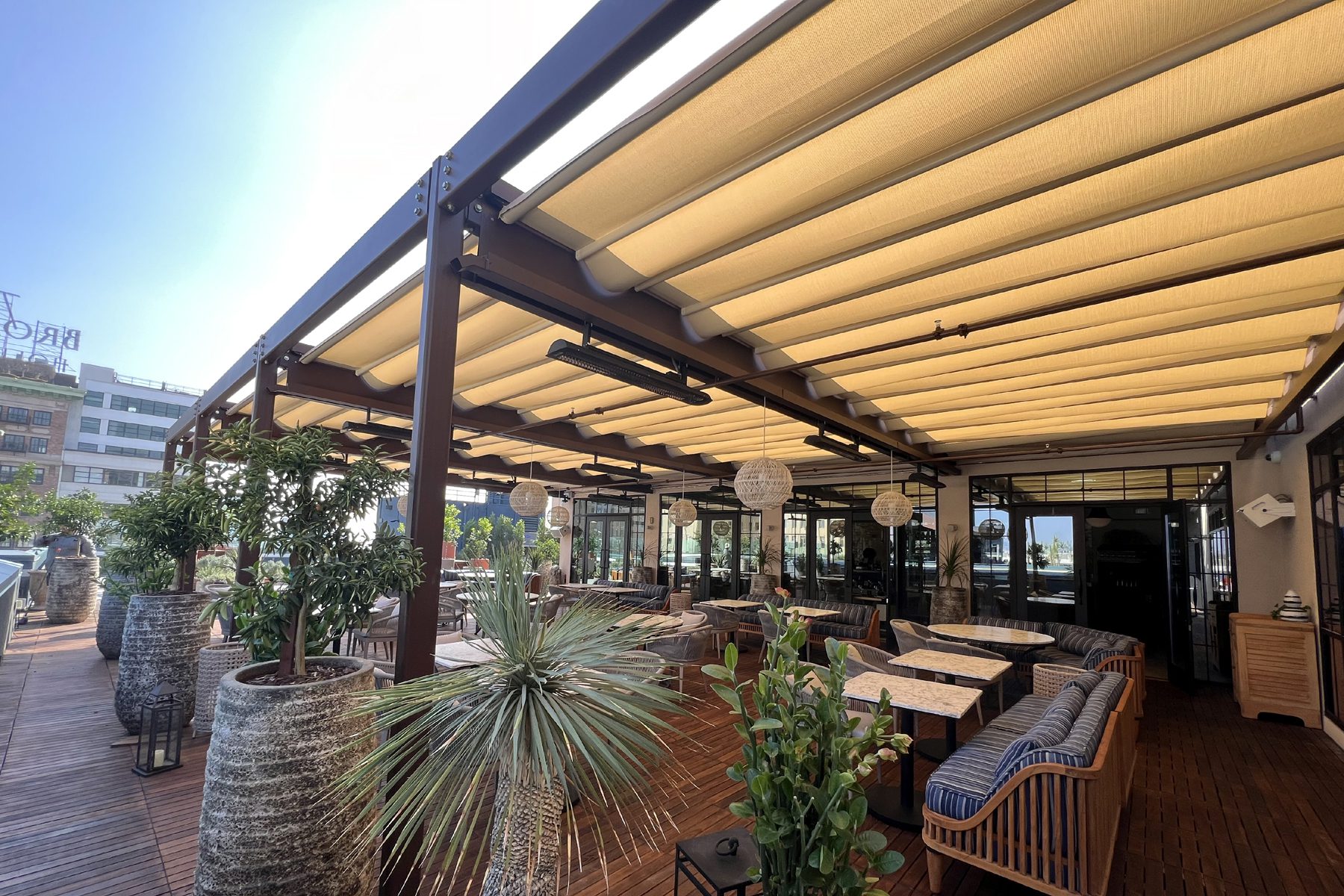

We designed and fabricated the 47′-7″ wide x 30′-0″ projection x 11′-4″ high structural steel frame engineered to withstand 94 MPH wind loads. The canopy structure includes four 12-foot wide bays designed to accommodate the top cover’s retracting and tensioning systems. Four Corradi Impact motorized units were specified with flame-retardant Serge Ferrari Soltis Proof W96 fabric membranes to provide a total shade coverage area of 1,420 square feet.

Our end-to-end design-build capabilities allowed us the speed and flexibility to successfully manufacture and install the Retractable Fabric Canopy System for this rooftop hotspot allowing everyone to enjoy a bit of the glamorous Hollywood history, views, lifestyle and passion.
