Company:
J. Miller Canvas, LLC

Project Details

Fabric 1

Commercial NinetyFive 340FR
Producer/Manufacturer: Gale Pacific USA Inc.
Primary Use: Main Fabric


Engineer Name 1
EEI Engineering Solutions

Engineer Company 1
EEI Engineering Solutions

Design Name
J. Miller Canvas, LLC

Design Company
J. Miller Canvas, LLC

Fabrication Name
J. Miller Canvas, LLC

Fabrication Company
J. Miller Canvas, LLC

Subcontractor Name
J. Miller Canvas, LLC

Subcontractor Company
J. Miller Canvas, LLC

Project Manager Name
J. Miller Canvas, LLC

Project Manager Company
J. Miller Canvas, LLC

Installation Name
J. Miller Canvas, LLC

Installation Company
J. Miller Canvas, LLC


Please describe the project specifications

Please describe the project specifications

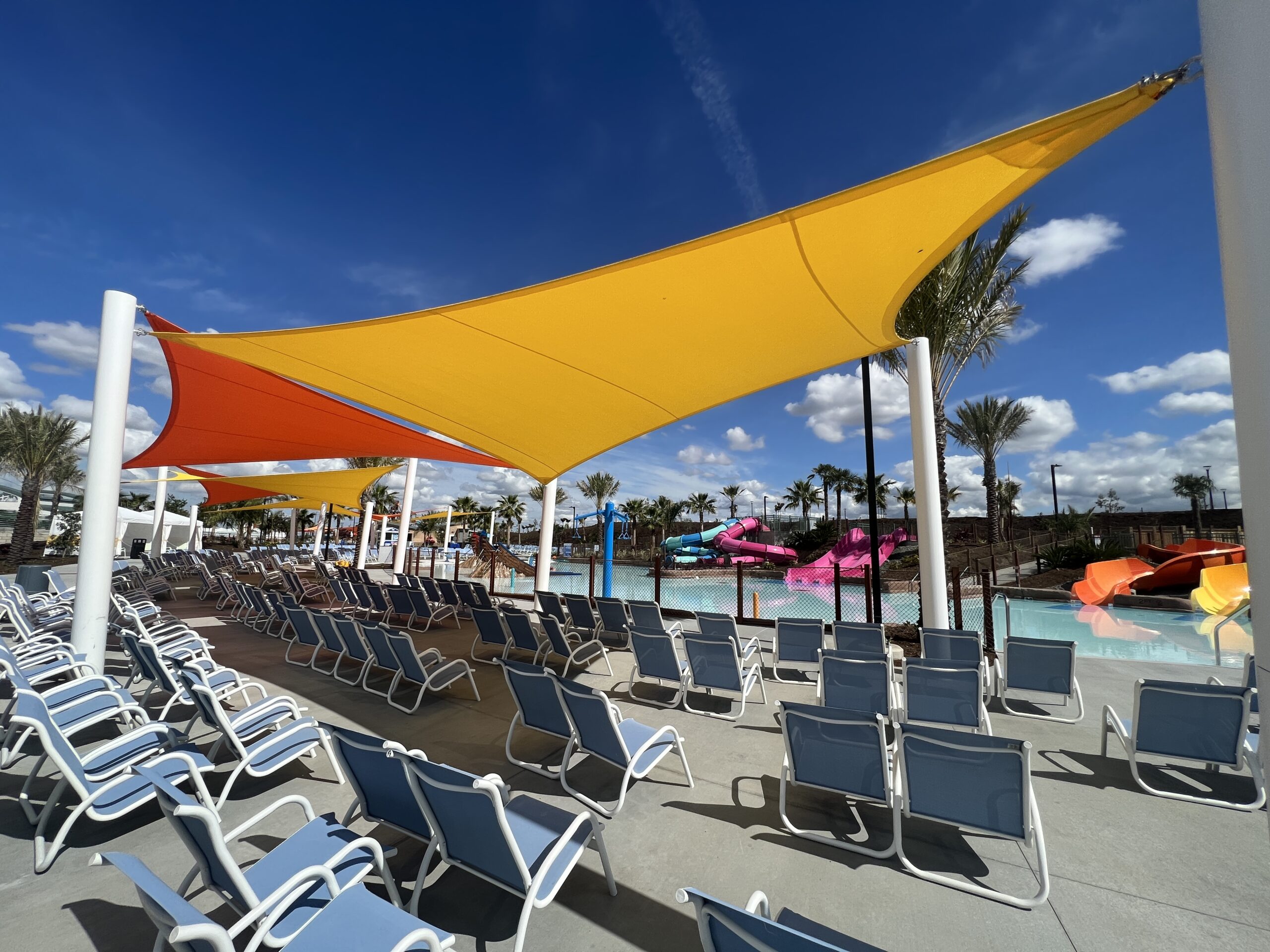

This design included nine cable tensioned shade sails of various sizzes using all marine grade stainless steel cable assemblies.

What is unique or complex about the project?

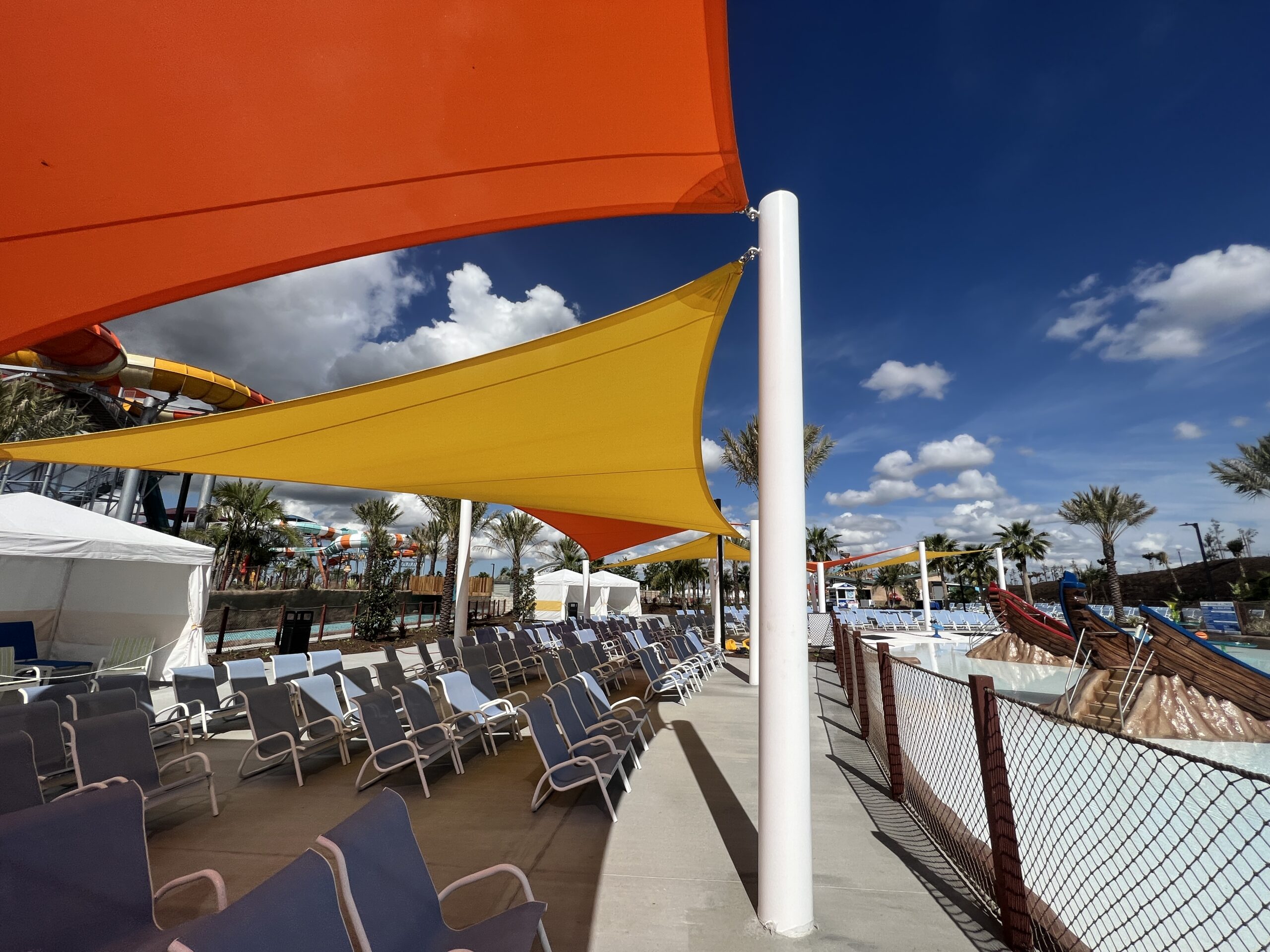

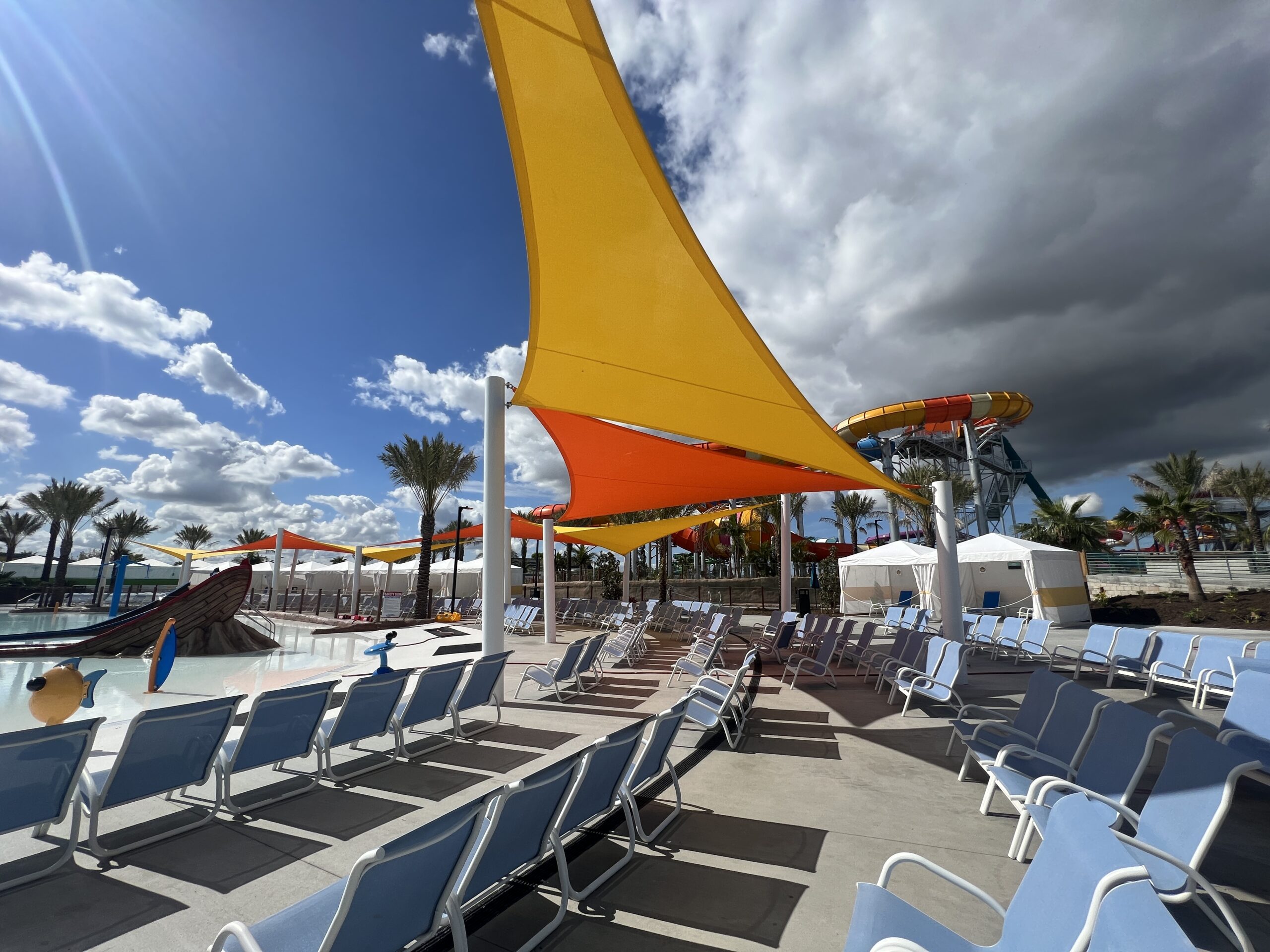

We opted for a hyperbolic paraboloid (hypar) design to showcase the vibrant colors of the shade sails and add visual depth to the overall aesthetic. Our focus was on maintaining a consistent seam layout across all the sails. Given that this project is situated at a waterpark, we made the decision to metallize the columns before applying the powder coat to prevent oxidation. Additionally, we utilized our Trimble laser, which leverages point cloud technology. This allows us to accurately capture field conditions and superimpose our design in CAD, enabling precise determination of all connection points without the need for lift equipment.


Content is submitted by the participant. ATA is not responsible for the content descriptions of the IAA award winners.
