Company:
Hayden Island Canvas

Project Details

Fabric 1

Sunbrella Forest Green
Producer/Manufacturer: Glen Raven Custom Fabrics LLC
Primary Use: Main Fabric

Fabric 2

Birch Top Gun
Producer/Manufacturer: Marlen Textiles
Primary Use: Additional Fabric

Fabric 3

Tuffak Marine 5 polycarbonate
Producer/Manufacturer: OTHER
Primary Use: Window

Fabric 4

O'Sea Marine vinyl 40 mil
Producer/Manufacturer: O'Sullivan Films
Primary Use: Window

Fabric 5

Solarfix Thread
Producer/Manufacturer: OTHER
Primary Use: OTHER


Design Name
Joshua Davis

Design Company
Hayden Island Cavnas

Fabrication Name
Dustin Morgan, Nick Giorgi, Danny Hintz, Josh Davis

Fabrication Company
Hayden Island Cavnas

Installation Name
Dustin Morgan, Danny Hintz, Josh Davis, Nick Giorgi

Installation Company
Hayden Island Canvas


Please describe the project specifications

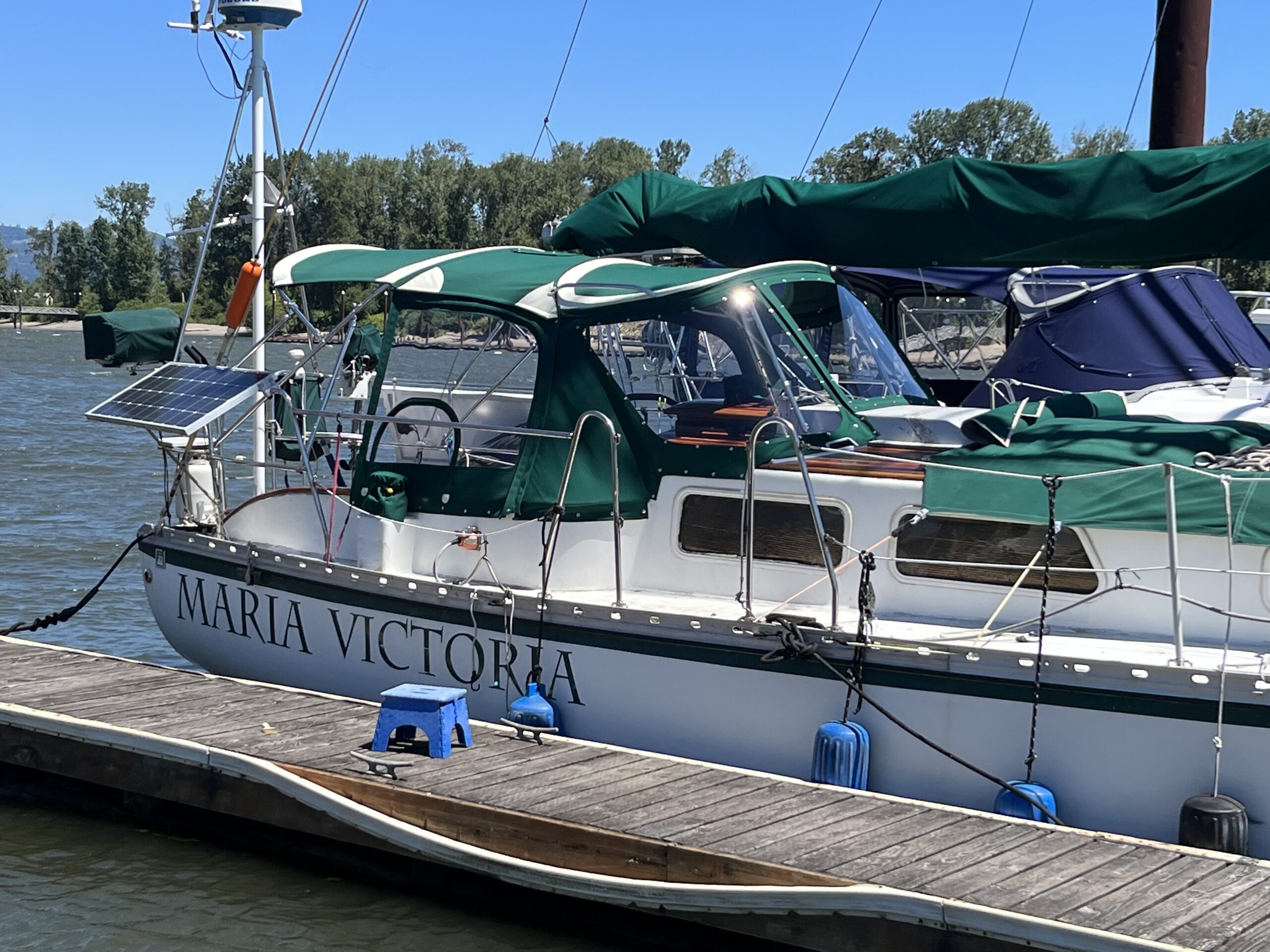

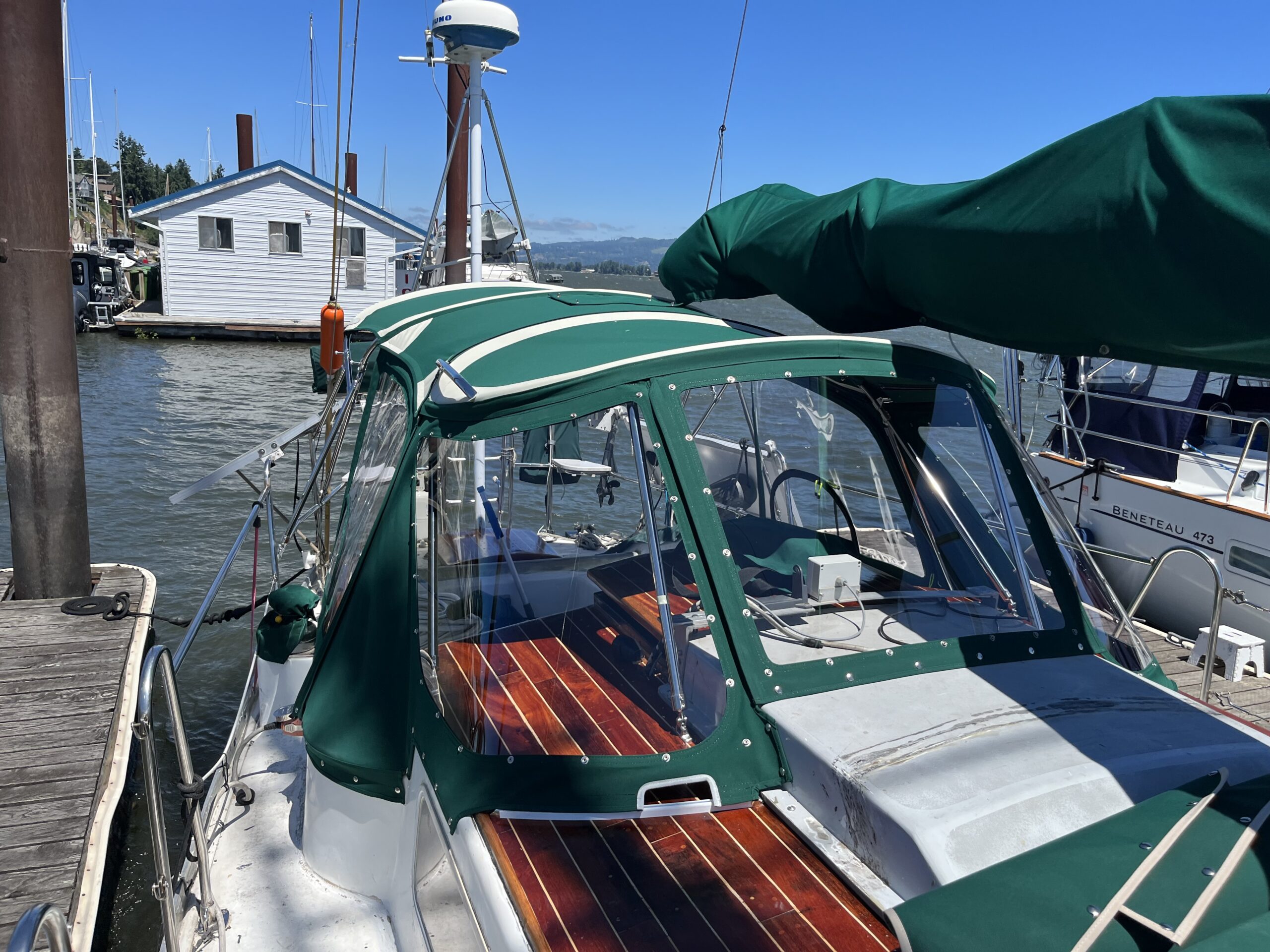

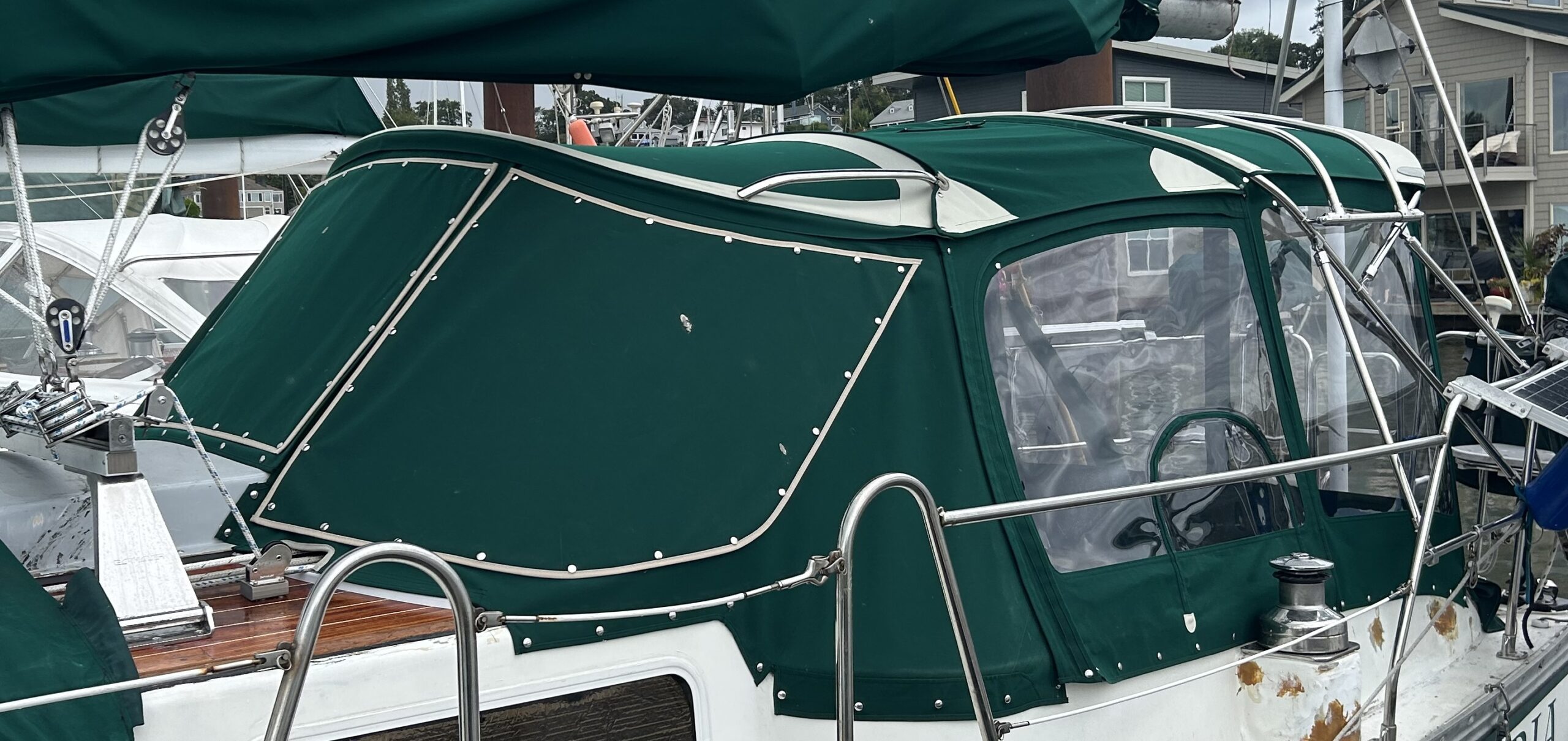

The owner of this Cascade 34 wanted an upgrade to his boat after having removed the old hardtop he didn't care for. He wanted a functional enclosure for offshore sailing. We fabricated frames for the dodger and bimini, along with Marine 5 panels in the dodger, and O'Sea panels for the rest of the enclosure. The owner also wanted a rack on the bimini for more solar panels in the future. We also added easy access zippers in the middle port and stb panels with overlaps to enter the cockpit without having to roll up the panels that fold back and snap into place instead.


What is unique or complex about the project?

This Cascade had many challenges. There needed to be winch access with full handle rotation with the enclosure in place along with a bump out for the odd shaped cockpit where the dodger was. The aft hatchway had to be avoided along with the owner's previously mounted side solar panels and the bimini frame needed to mount outside of the enclosure but have the panels come inside the frame.
